What Tendon Imaging Actually Reveals: X-ray, MRI, EMG

You got the scan. It came back normal. And you walked out of that appointment more confused than when you walked in, because you are clearly in pain, yet the tendon imaging says nothing is wrong.

Here is the thing nobody explained to you. Your tendon imaging was never going to find the cause of your pain. Not because the imaging failed, and not because your pain is imaginary, but because the type of problem you have does not show up on the type of test they ran. And once you understand why, the entire confusing experience finally makes sense.

I want to walk you through what each kind of tendon imaging actually sees, why repetitive strain injury is nearly invisible to all of them, and what the one test that actually matters looks like. This is a thorough one, but by the end you will understand your own situation better than most of the providers you have seen.

First, What Is Actually Happening in Your Tendons

To understand why tendon imaging misses this, you first need to understand what the problem actually is. And it is not damage in the way you have probably been led to fear. It is interrupted rebuilding.

Here is the model. Your tendons and muscles are living, adaptive tissue. When you load them, you create a small amount of stress that triggers a biological repair and adaptation response. The tissue registers the stress, ramps up its rebuilding machinery, and over the following days it comes back a little stronger and better able to handle that load. This is exactly what happens when you go to the gym. You stress the muscle, it responds by rebuilding, and it adapts to become stronger. Stress, recover, rebuild, strengthen. That is the healthy adaptive cycle, and it is a good thing [2].

The critical part of that cycle is the recovery window. The rebuilding is not instant. After you load a tendon, its collagen-building process takes days to fully play out. In fact, research on tendon collagen turnover shows something striking. In the first day or so after a loading bout, the tendon actually experiences a period of net collagen breakdown before the rebuilding catches up and pushes it net positive, which takes roughly two to three days. So there is a window after loading where the tendon is temporarily in a rebuilding deficit, and it needs adequate recovery time to come out ahead and end up stronger.

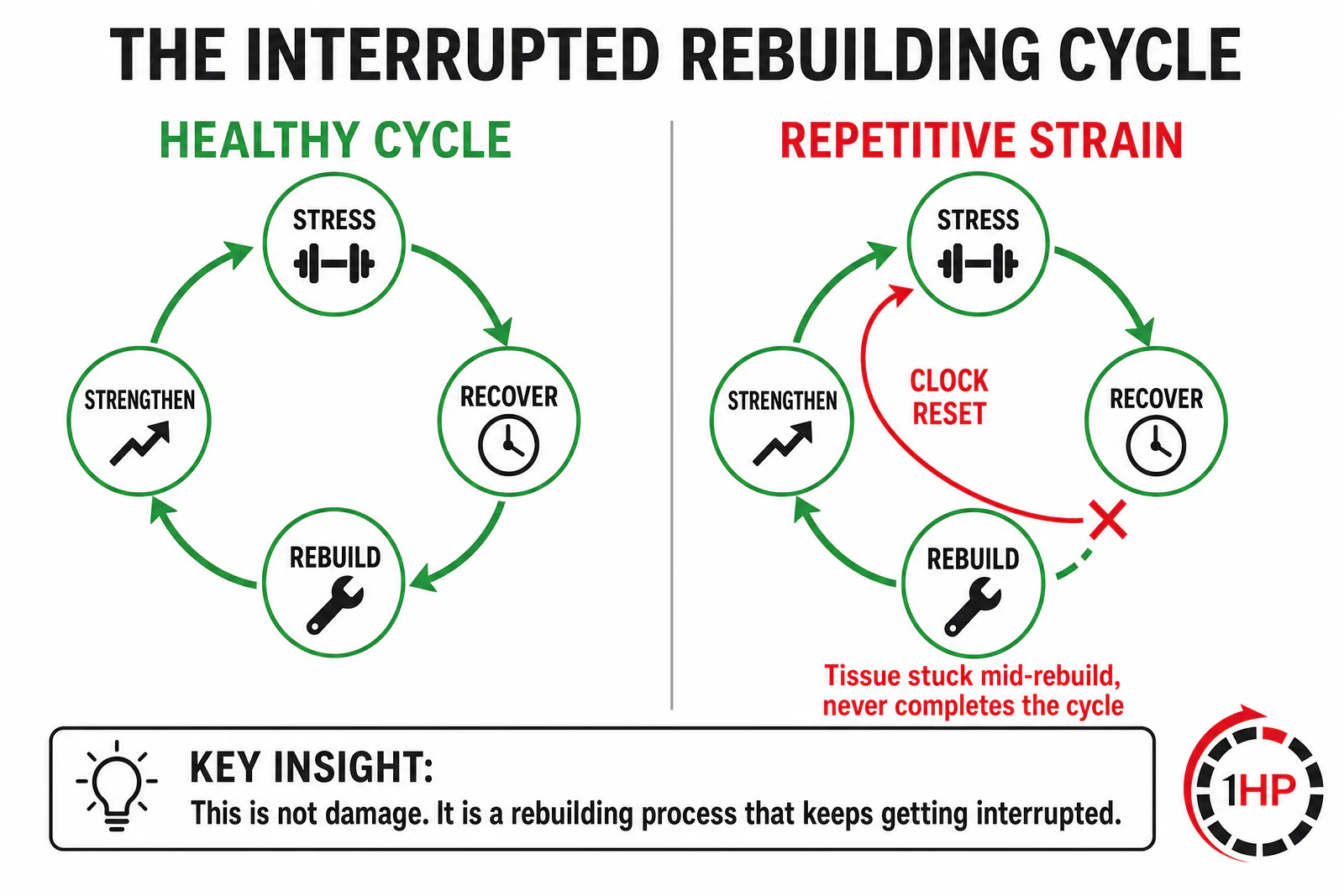

Now here is what goes wrong in repetitive strain. If you keep loading the tendon into that stressed state again and again, day after day, before the rebuilding cycle from the previous bout has had time to complete, you never let the tissue finish the job. You reset the clock every time. Instead of a clean stress-recover-rebuild-strengthen cycle, the tendon gets stuck perpetually mid-rebuild, repeatedly knocked back into deficit before it can come out ahead. Over weeks, months, and years, those incomplete cycles accumulate, and the tissue ends up under-built and disorganized relative to the demands being placed on it. This is what the research describes as a failed, or in gentler and more accurate terms an incomplete, healing response [3].

This is the tendinopathy continuum. It starts as a reactive response, the tissue reacting to a load it has not been given time to adapt to, and if the overload-without-recovery pattern continues, it can progress into a state of disrepair where the rebuilding is genuinely disorganized [1]. But notice the framing. This is not a story about something being torn or broken. It is a story about a rebuilding process that keeps getting interrupted before it can complete. And that reframe matters enormously, because an interrupted rebuild is something you can finish. You just have to stop resetting the clock and let the tissue complete the cycle, while progressively building its capacity.

Hold onto that idea, because it is also the key to why tendon imaging cannot see any of it.

Why the Problem Is Invisible to a Snapshot

In the reactive and early stages, where most people in pain actually are, the changes in the tendon are subtle and largely cellular. The collagen framework is still mostly intact and organized. What has changed is the cellular activity, the ground substance, the water content, things that do not produce the obvious structural signatures that tendon imaging is designed to detect. The rope, so to speak, still looks like a rope.

More fundamentally, imaging is a snapshot. It captures the structure of the tissue at one frozen moment. But your problem is not fundamentally about structure at one moment. It is about how the tissue behaves under repeated load over time. A photograph of a tendon at rest simply cannot show you how that tendon responds when you ask it to contract a few thousand times in a row. You are trying to diagnose a dynamic, load-dependent, capacity problem with a static picture, and that mismatch is the heart of why tendon imaging comes up empty [4].

Let me show you exactly how this plays out across each type of scan.

X-Ray: Bone Only

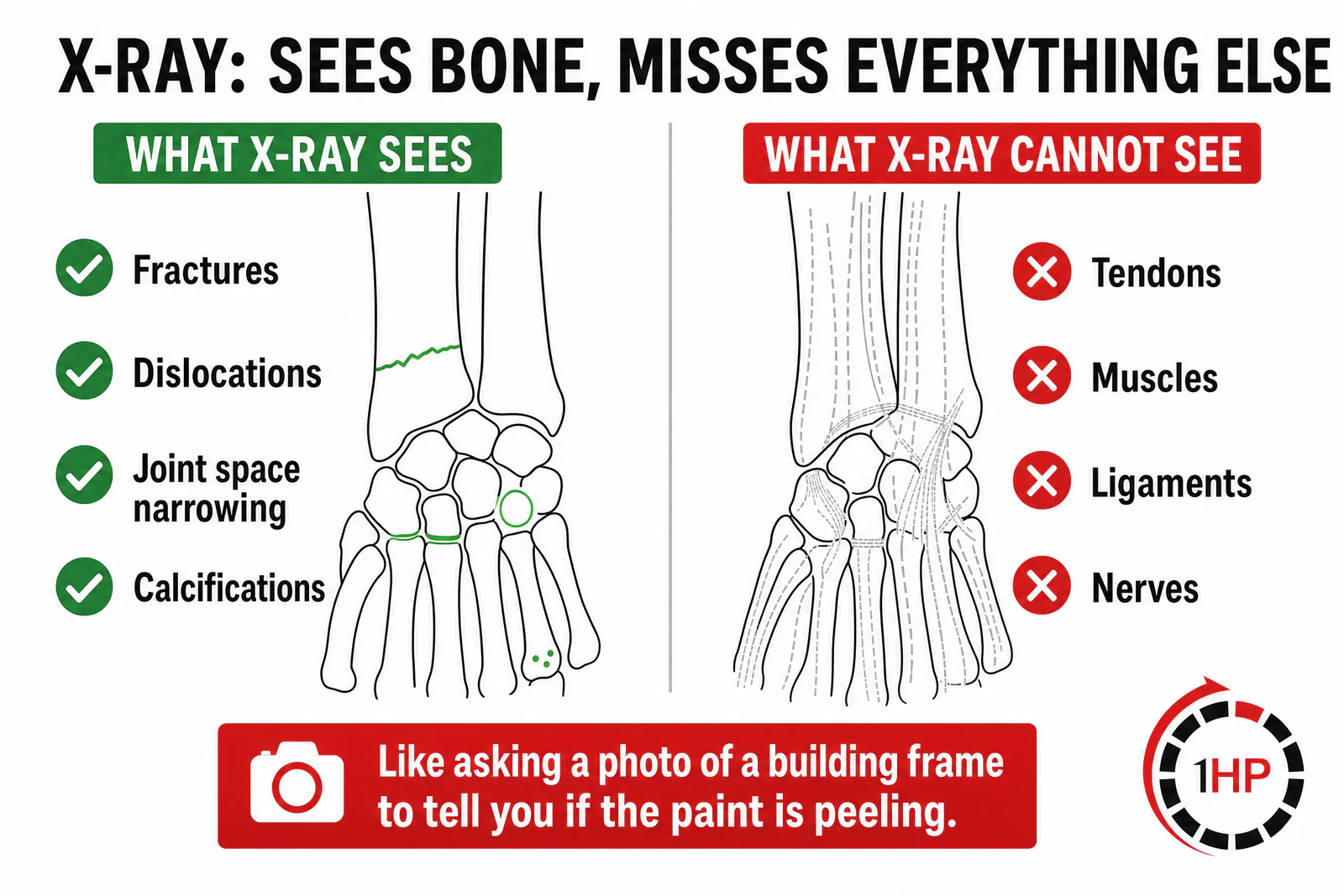

X-rays visualize bone and the spaces between bones. They are good for seeing fractures, dislocations, significant joint space narrowing, bony arthritis changes, and calcifications. They are cheap, fast, and widely available, which is why they are often the first thing ordered, and frankly why they are overused.

Here is the problem for you. X-rays essentially cannot see soft tissue at all. Muscles, tendons, ligaments, and nerves are the structures involved in repetitive strain, and they are nearly invisible on an X-ray. So for a tendon problem, an X-ray can do exactly one useful thing, which is confirm you have not broken a bone. It cannot visualize the tendon that is actually causing your pain. Asking an X-ray to diagnose tendinopathy is like asking a photo of a building's steel frame to tell you whether the paint is peeling.

MRI: Great Detail, Wrong Question

MRI is genuinely impressive. It produces detailed images of soft tissue, muscles, tendons, ligaments, cartilage, nerves, and bone marrow. Different sequences can emphasize different tissues, and fluid-sensitive sequences can highlight water and swelling. MRI is excellent at detecting significant structural problems, a full tendon tear, a large area of established degeneration, a mass, significant swelling.

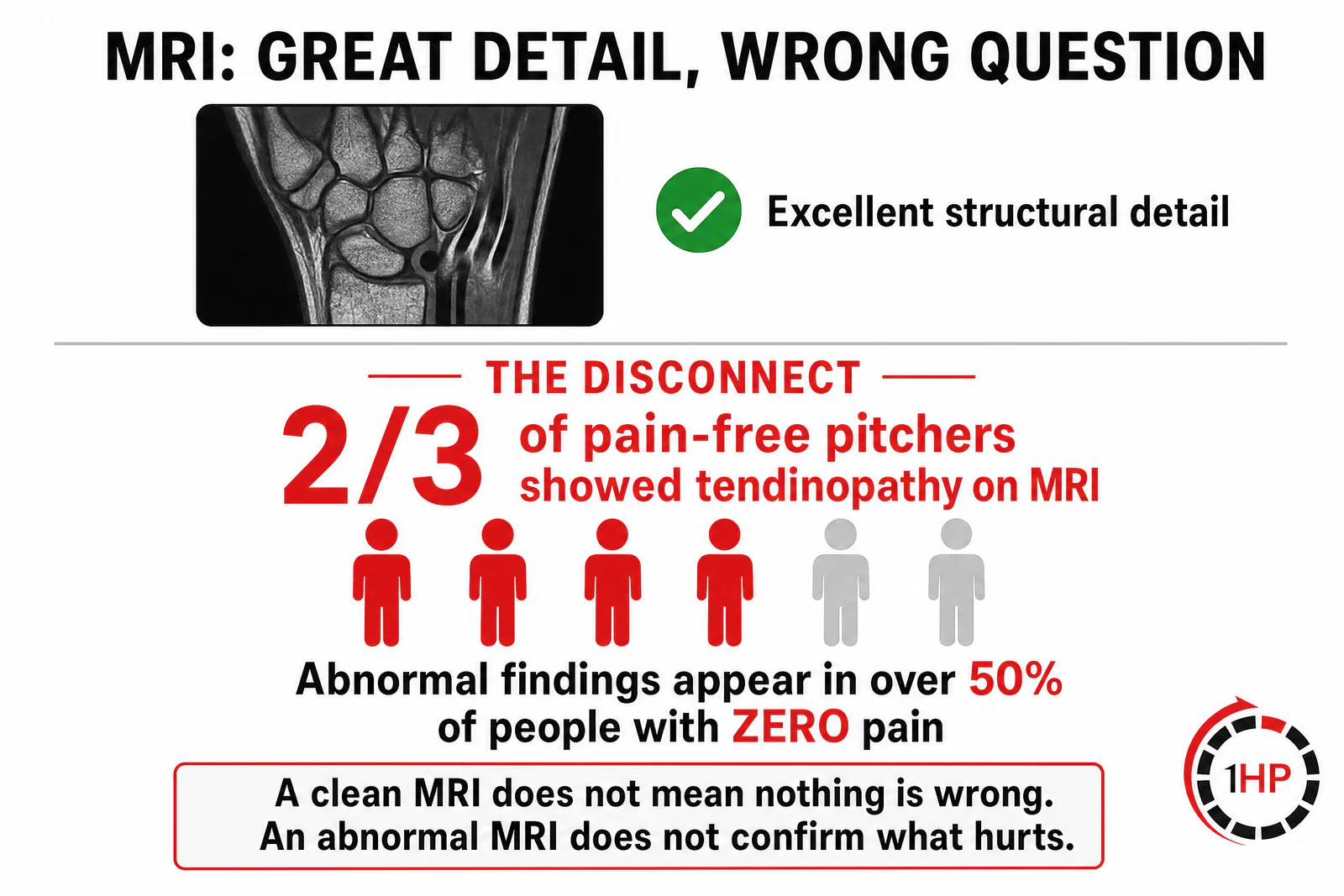

But for reactive and early tendinopathy, MRI runs into two walls. First, the changes are often too subtle to register, because the collagen structure is still largely intact. The tendon in its reactive state frequently looks unremarkable, or shows only mild, nonspecific changes. Second, and this is the bigger issue, the findings do not correlate with pain. Studies have repeatedly shown that abnormal tendon findings appear in large numbers of people who have no pain at all. In one well-known study, nineteen professional baseball pitchers with no symptoms had detailed MRIs of their throwing shoulders, and around two thirds showed tendinopathy, with a third showing partial tendon tears [5]. None of them had pain. Abnormal tendon findings have been reported in well over half of completely asymptomatic people across various studies.

So an MRI finding, positive or negative, tells you remarkably little about whether that tendon is the source of your pain. A clean MRI does not mean nothing is wrong, and an abnormal MRI does not confirm the abnormality is what hurts. It is answering a structural question when your problem is a capacity question.

Ultrasound: Better for the Wrist, Same Blind Spot

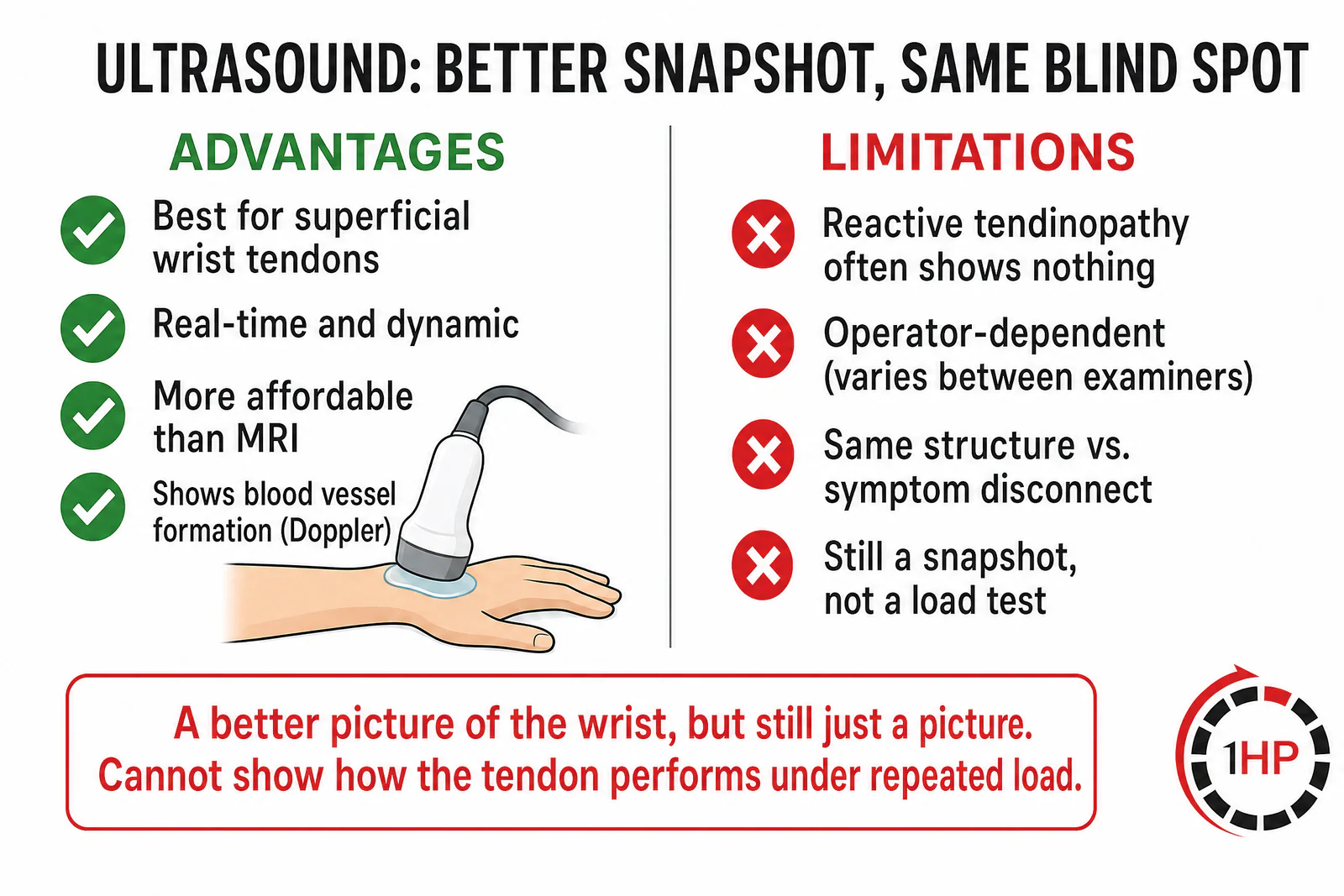

Diagnostic ultrasound is often the best structural tendon imaging choice for the wrist and hand specifically, because those tendons are superficial and ultrasound excels at superficial detail. It is real-time, it can be dynamic so the tendon can be watched as it moves, it is more affordable than MRI, and with Doppler it can show increased blood vessel formation in a tendon. It can reveal tendon thickening, tears, and fluid within a tendon sheath.

But ultrasound shares the exact same fundamental limitation. Reactive tendinopathy frequently shows subtle or no changes, because again the structure is largely preserved in the stage most people are in. The findings are operator-dependent and vary between examiners. And critically, ultrasound findings suffer from the very same structure-versus-symptom disconnect as MRI. Thickening and abnormalities show up in plenty of pain-free tendons, and plenty of painful tendons look acceptable on ultrasound. It is a better snapshot for the wrist, but it is still a snapshot, and it still cannot show how the tendon performs under sustained, repeated load.

EMG and Nerve Conduction Studies: The Wrong Tissue Entirely

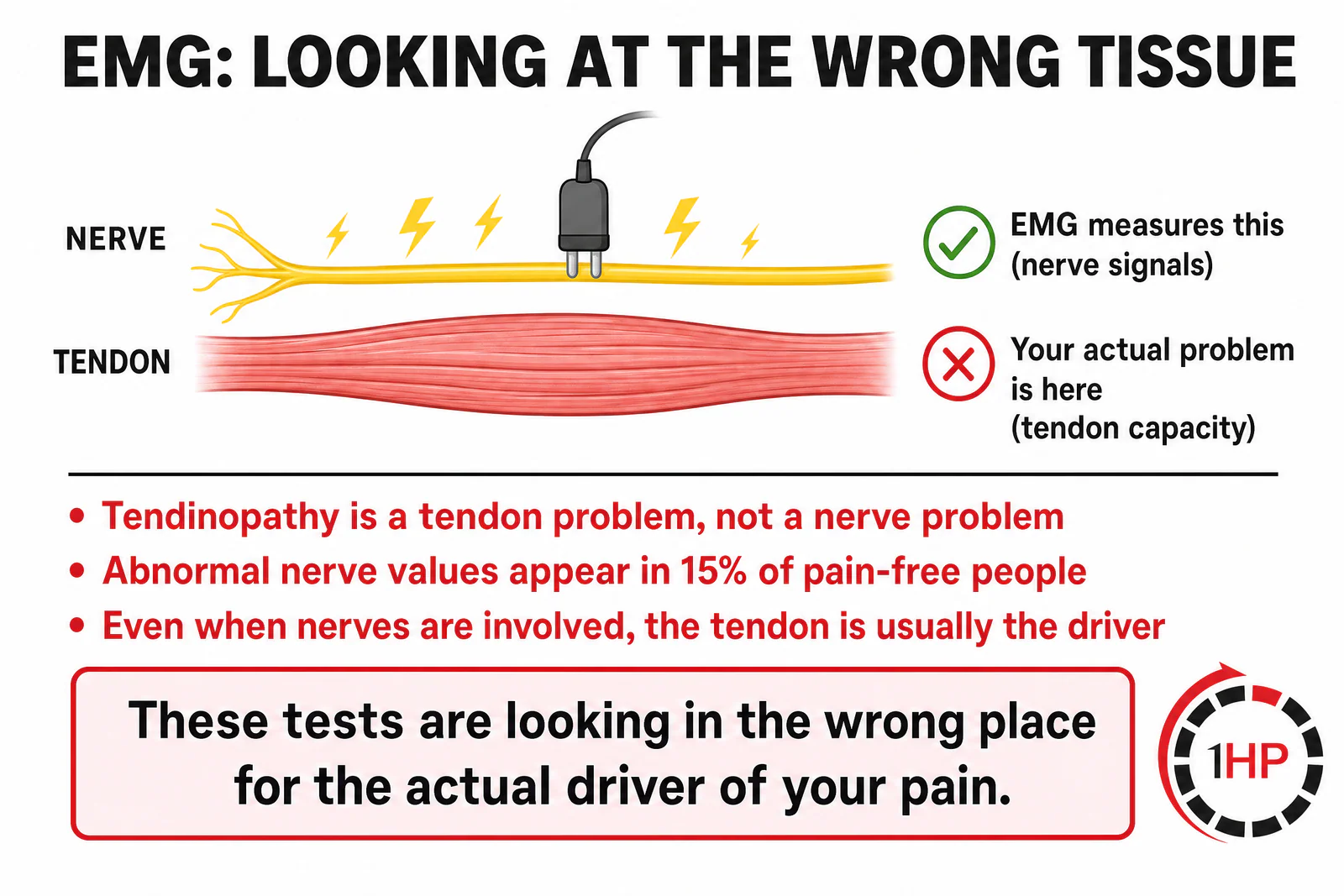

Electromyography and nerve conduction studies are a different category. They do not image structure at all. They assess the electrical function of nerves and muscles. Nerve conduction studies measure how quickly and strongly a signal travels along a nerve, and they are used to detect nerve compression or damage, like carpal tunnel or cubital tunnel syndrome.

Here is why they miss repetitive strain. Tendinopathy is a tendon and muscle capacity problem, not a nerve conduction problem. EMG and nerve studies are looking at an entirely different system. They can be a useful adjunct when there is genuine nerve involvement, but even then they have real limitations. Abnormal nerve values show up in people with no symptoms, the severity of the findings does not correlate well with symptoms or function, and they cannot reliably predict outcomes [6]. And when nerve symptoms do appear in a repetitive strain picture, they are frequently caused by swollen, irritated tendons crowding a nearby nerve, in which case the underlying problem is still the tendon, and a mild or transient compression may produce completely normal nerve study results anyway. So these tests are looking in the wrong place for the actual driver of your pain.

The Common Thread

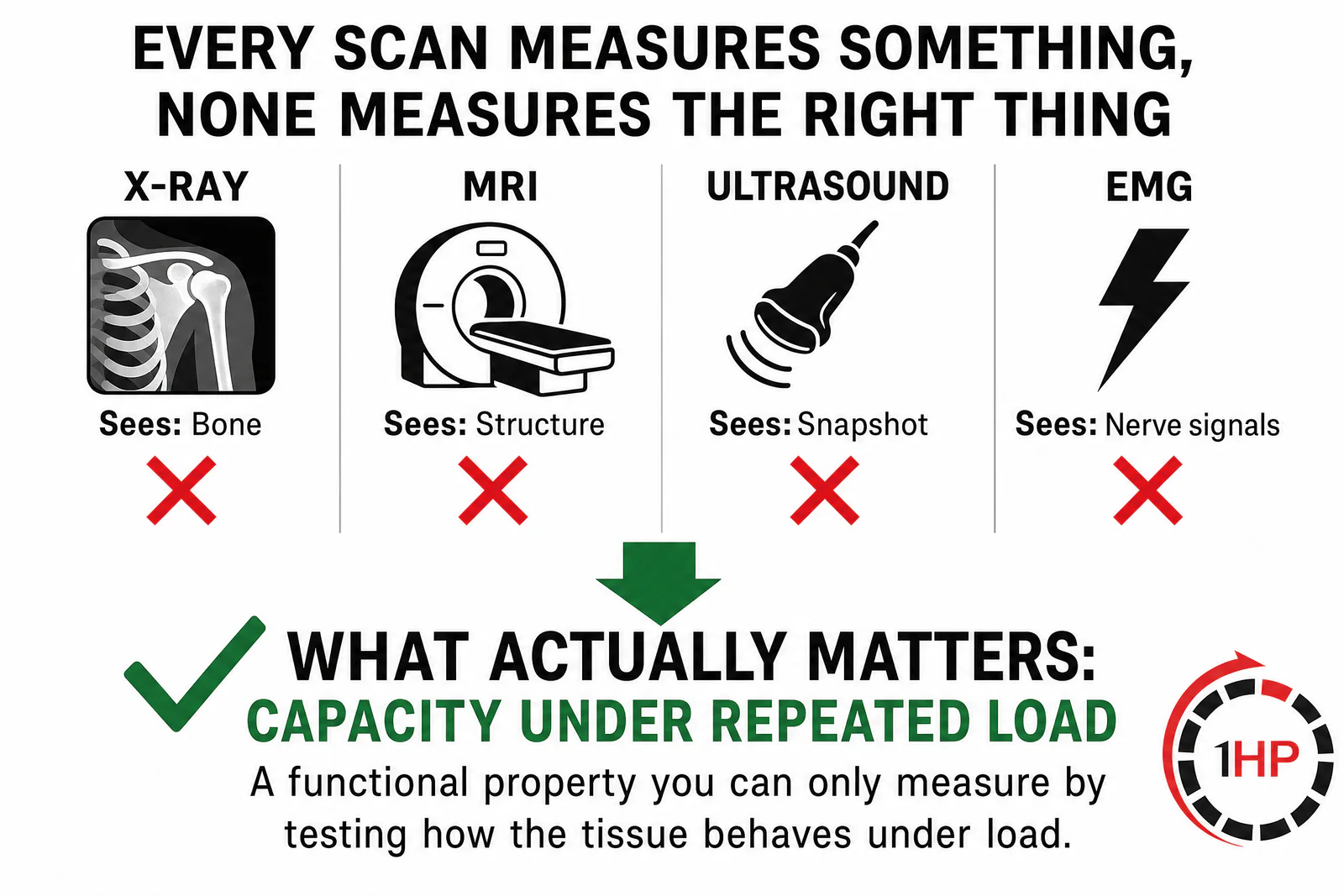

Step back and the pattern is obvious. X-ray looks at bone. MRI and ultrasound look at soft tissue structure. Nerve studies look at nerve electrical function. Every one of them is measuring something, and none of them is measuring the thing that is actually wrong.

Because the actual problem is capacity. It is the tissue's ability to tolerate repeated load, and the fact that its rebuilding has been interrupted so many times that its capacity has fallen below the demands you place on it. Capacity is not a structure you can photograph. It is a functional property you can only measure by testing how the tissue behaves under load. And that is precisely what no scan does.

This is also why tendon imaging is genuinely valuable for one thing and misused for another. It is good at ruling out serious structural problems, a real tear, a fracture, a mass. It is good at telling you what is not wrong. It is poor at telling you what is wrong when the problem is a capacity deficit. It is a rule-out tool being asked to be a rule-in tool.

The One Test That Actually Diagnoses This

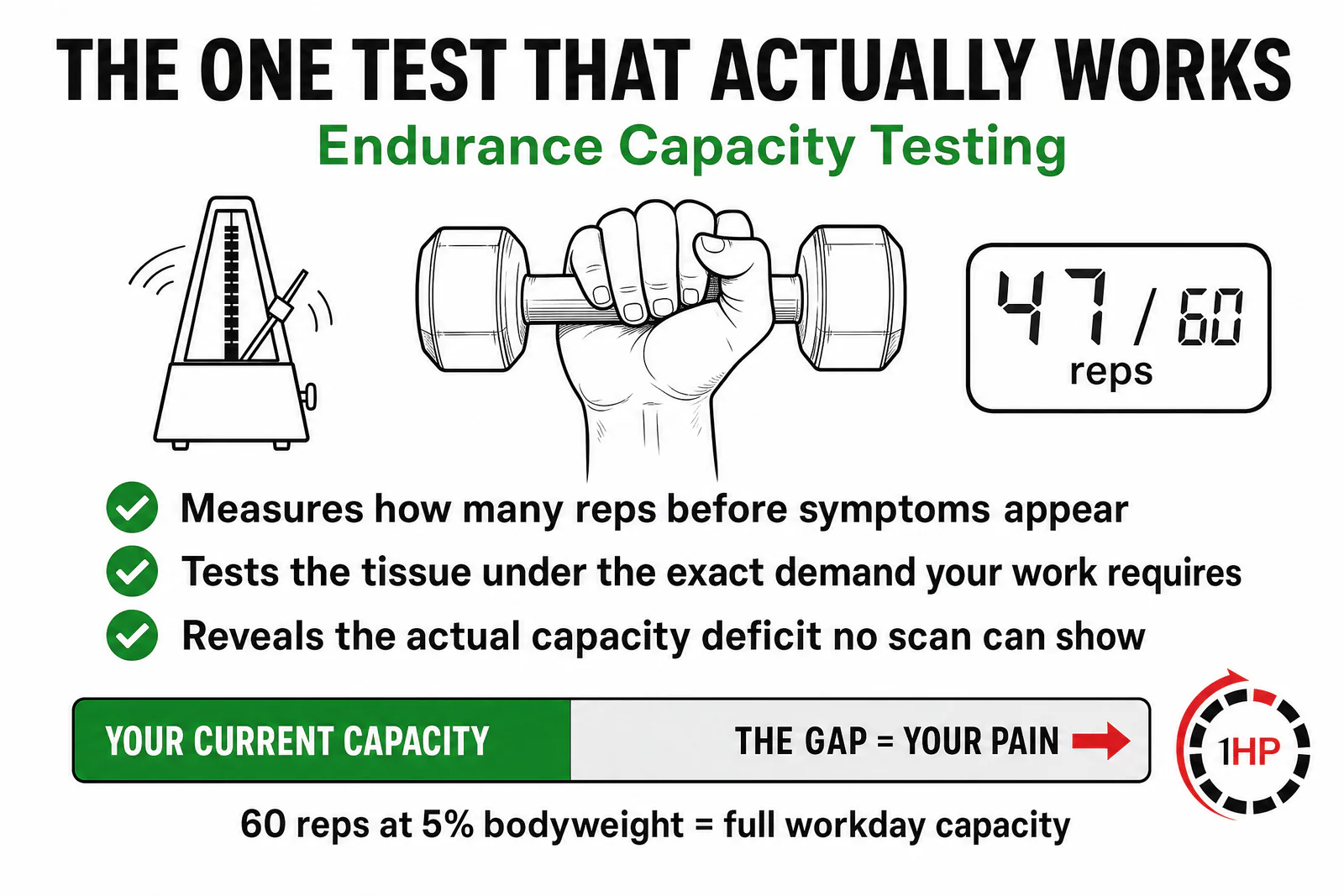

If the problem is capacity, then the right diagnostic tool is one that measures capacity directly. And that means loading the tissue in a controlled, repeated way and measuring how it actually responds. Endurance capacity testing.

Think about what this reveals that no image can. It shows you how many repetitions the tendon and muscle can perform at a given load before symptoms or failure set in. It shows you how the tissue behaves under exactly the kind of sustained, repeated demand that your work and hobbies place on it. It measures the actual variable, the capacity to tolerate repeated load, that defines whether you have a repetitive strain problem and how significant it is. It is a functional test for a functional problem, rather than a structural picture for a functional problem.

This is the entire logic behind our healthbar framework. Your tissue has a certain capacity for repeated load, and when your demands exceed it, you get irritated and you feel pain. Endurance testing is how we actually measure the size of that healthbar, something a scan fundamentally cannot do.

How We Actually Measure It

Our assessment is straightforward and it directly tests the thing that matters. We take you through a controlled endurance test for each affected region. A specific load, a metronome to standardize the pace, and a measured count of how many continuous repetitions you can perform before symptoms or fatigue set in. That number is your real baseline, and it tells us exactly where your capacity sits and how large the deficit is between what your tissue can currently handle and what your daily demands require.

To give you a concrete anchor, our benchmark for having enough capacity to handle a full workday of computer-based hand use is being able to perform around 5 percent of your bodyweight for 60 continuous repetitions. Most people who come to us in chronic pain are sitting well below that when we test them, sometimes at a fraction of it. That gap, invisible to every scan they have had, is the actual problem. And once we can see it and measure it, we can build a program to close it and track your progress against real numbers.

That is the difference. Tendon imaging told you what you do not have. The endurance assessment tells you what you do have, what you are missing, and exactly what to do about it.

If You Are Tired of Scans That Explain Nothing

A free consultation is where we start, and it centers on the assessment nobody has run for you. We measure your actual endurance capacity, show you the specific deficit driving your pain, explain why your imaging came back the way it did, and lay out a clear path forward for your case.

Most people leave that call understanding their pain more clearly than they have across every appointment and scan that came before it.

We have a small number of spots remaining this month.

Book a free consultation with our physical therapists today

---
